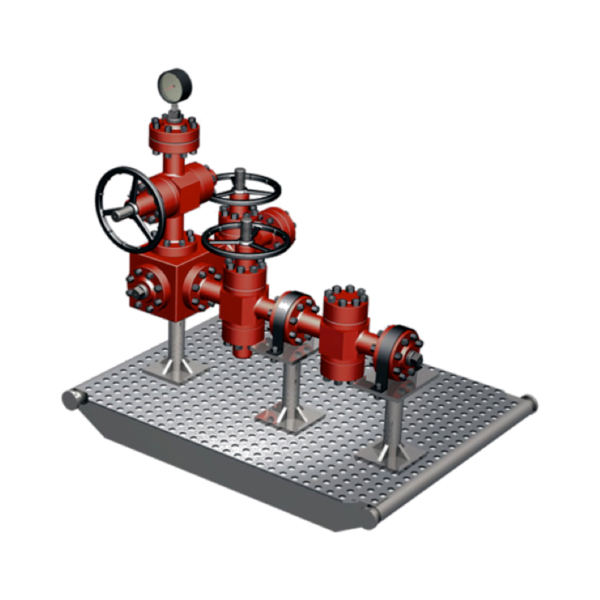

Kill Manifold

Kill Manifold is an important part among the oil gas well pressure control equipment. Its main purpose is, when there is no normal cycle with the drilling string, then can through the kill manifold to bump into the well with drilling fluid, in order to control the well pressure. One end of the kill manifold is connected with the drilling well cross, and another end is connected with the BOP.





Kill manifold consists of check valves, gate valves, pressure gauges and line pipes.





Specification:

  • Working pressure:   2000PSI～15000PSI
  • Nominal diameter:   2 9/16” ～ 4 1/16”
  • Temperature rating: -46℃～121℃ (LU Grade)
  • Material class:       AA、BB、CC、DD、EE、FF
  • Product specification level:   PSL1～4
  • Performance level:   PR1～2
  • Product standard:     API 6A & API 16C
  • Working medium: Petroleum, Natural gas, Slurry, Including H2S,CO2 gas
